This instrument adopts advanced mechanical design technology, manufacturing technology, and microcomputer control technology. The data is accurately collected and displayed on a blue-backlit, high-brightness LCD display for clear data display. This instrument features high sensitivity, reliable test results, convenient operation, and beautiful appearance. It is a precise instrument for measuring the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids. It is widely applicable to products such as oils, paints, plastics, pharmaceuticals, food, coatings, adhesives, sealants, resins, and chemical raw materials.

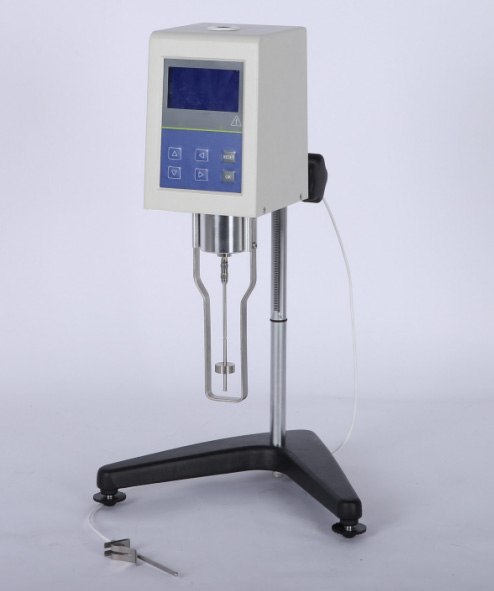

Equipment Diagram (for reference only)
| Parameter | Value |
|---|---|
| Power supply | AC 220V ± 10, 50Hz ± 10% |
| Power | 12W |
| Display mode | LCD display |
| Measuring accuracy | ± 2% (Newtonian liquids) |
| Measuring range | 1~2x10^6mPa.s |
| Rotor specifications | Rotor 1-4, can be matched with Rotor 0 |
| Rotor speed | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm |
| Timing duration | 40s~99min59s/continuous operation |
| Dimensions | 370x325x280mm |
| Net weight | 6.8kg |
The lifting and lowering system adopts a helical rack/helical gear mechanism.
A universal joint is added to the connection between the rotor and the interface.
The variable speed gears are made of high-wear-resistant, high-performance engineering plastics.
The rotors are made of imported high-quality 304 stainless steel and are precision machined.
